7pcs Chain Lock Turbo Timing Tool Kit for Vauxhall Opel Astra j Corsa d 1.0 1.2

TURBO ENGINE TIMING TOOL KIT

APPLICATION

VAUXHALL / OPEL
Adam 1.2 1.4 (2012- ),
Ampera 1.4 (2011- ),
Astra-J 1.4 (2009),
Cascada 1.4 (2013-),
Corsa-D 1.0 1.2 1.4 (2009-),
Insignia 1.4 (2011-),
Meriva-B 1.4 (2010-),
Mokka 1.4 (2012-),
Zafira-C Tourer 1.4 (2011-)

CHEVROLET
Aveo1.2 1.4 (2011-),
Cruze 1.4 (2011-),
Orlando 1.4 (2012-)

Item Description
Designed to lock the cam and crank shafts in position
to allow the removal and replacement of the timing chain
fitted to the Vauxhall/Opel twin Cam engines below.

Removal of the timing chain will require the removal
of the sump. Ensure the engine is at TDC No 1
cylinder. Ensure the chain tensioner is fully retracted
and held in the retracted position using a suitable
pin. Remove the crankshaft pulley using an
appropriate pulley holding tool.

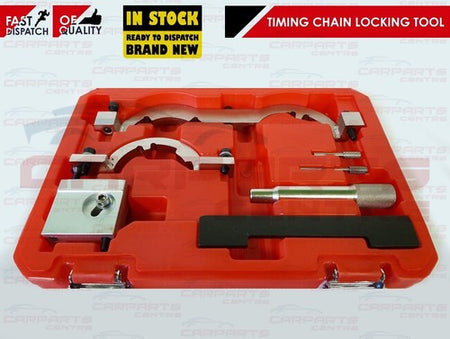

Content:
1. Crankshaft Locking Pin
2. Camshaft Setting Plate
3. VVT Sensor Setting Tool (1.0L)
4. VVT Sensor Setting Tool (1.2 & 1.4L)
5. Camshaft Sprocket Holding Tool
6. Chain Tensioner Locking Pin
7. Belt Tensionet Locking Pin

Engines Code:
1.0: A10XEP (LDB),
1.2: A12XEL (LWD), A12XER (LDC),
1.4: A14XEL (L2Z), A14XER (LDD), LDU, A14XFL
1.4(T): A14NEL (LUH), A14NET (LUJ),
Twinport / ecoFLEX engines ( chain )
LWD, L2Z, LDD, LUU/A14XFL, LDD/A14XER,
LDD/A14XEL, LUJ/114NET, LUJ/A14NEL, A10XEP,
A12XEL, A12XER, A14XEL, A14XER, A14NEL, LUJ
A14NET, LDD/A14XER, LUJ/A14NET, LUH/A14NEL,
LUJ/A14NET, LUJ/A14NEL, L2Q/A12XEL, LDC/A12XER,
LWD/A12XEL, LDD/A14XEL, LDD/A14XER
